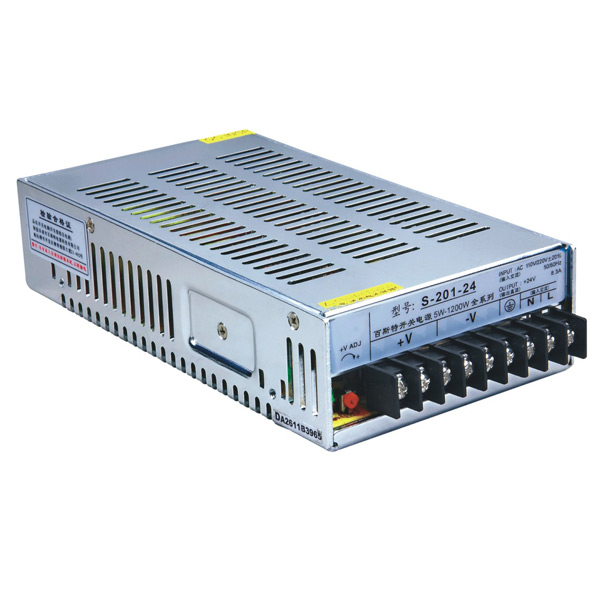

Item # S-201
Item Features:
• Input: 110 / 220V AC selected by switch
• Output: DC 5V,7.5V,10V,12V,15V,18V,24V,27V,36V,48V
• Protections: Short circuit/Over load/Over temperature
• Cooling by free air convection
• 100% full load burn-in test
• Compact size, light weight
• Fixed switching frequency at 25KHz
Length x Width x Height:
• Product size: 215*115*50mm (L*W*H)
|
Model |
S-201-5 |
S-201-12 |
S-201-15 |
S-201-24 |
S-201-27 |
S-201-48 | |
|
Output |
DC voltage |
5V |
12V |
15V |
24V |
27V |
48V |
|
Voltage tolerance |
±2% |
±1% |
±1% |
±1% |
±1% |
±1% | |
|
Rated current |
40A |
16.5A |
13.4A |
8.3A |
7.4A |
4.2A | |
|
Current range |
0~40A |
0~16.5A |
0~13.4A |
0~8.3A |
0~7.4A |
0~4.2A | |
|
Rated power |
200W |
198W |
201W |
199.2W |
199.8W |
201.6W | |
|
Ripple&noise |
120mvp-p |
150mvp-p |
150mvp-p |
180mvp-p |
180mvp-p |
200mvp-p | |
|
DCvoltage ADJ.range |
±10% |
±10% |
±10% |
±10% |
±10% |
±10% | |
|
Input |
Voltage range |
90~132VAC/180~264VAC(selected by switch), 255~373VDC | |||||
|
frequency |
47~63HZ | ||||||
|
AC current |
4.5A/115VAC, 2.5A/230VAC | ||||||
|
efficiency |
78% |
80% |
80% |
82% |
82% |
83% | |
|
Inrush current |
Cold start current 25A/115VAC, 50A/230VAC | ||||||
|
Leakage current |
< 3.5mA/240VAC | ||||||
|
Protection |
overload |
Rated output power105%~135% start over load protection | |||||
|
protection type: rated current limit, auto-recovery after fault condition is removed | |||||||
|
Over voltage |
6.8~8.2V |
15.6~17.8V |
18.6~20.8V |
30.6~33.2V |
33.2~35.6V |
54.8~56.6V | |
|
Protection type:hiccup mode,auto-recovery after fault condition is removed | |||||||
|
Over temperature |
inner temperature≥85℃ start over temperature protection | ||||||
|
Protection mode:cutoff output,auto-recovery after temperature become normal | |||||||
|
Environment |
Working temp,humidity |
-10°C~+60°C, 20%~90%RH | |||||
|
Storagetemp,humidity |
-20°C~+85°C,10%~95%RH non-condensing | ||||||
|
Withstand vibration |
10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes | ||||||
|
Safety |
Withstand voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||||
|
Isolated resistance |
I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC | ||||||
|
Fitstandard |
Safety standard |
Fit UL1012 | |||||
|
EMC standard |
EN55022,CLASSA | ||||||
|
Others |
Dimension |
215*115*50mm (L*W*H) | |||||
|
Weight/packing |
0.87kg/24pcs/22kg/0.049 m³/1.72CUFT | ||||||
|
Note |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. | ||||||
