Model

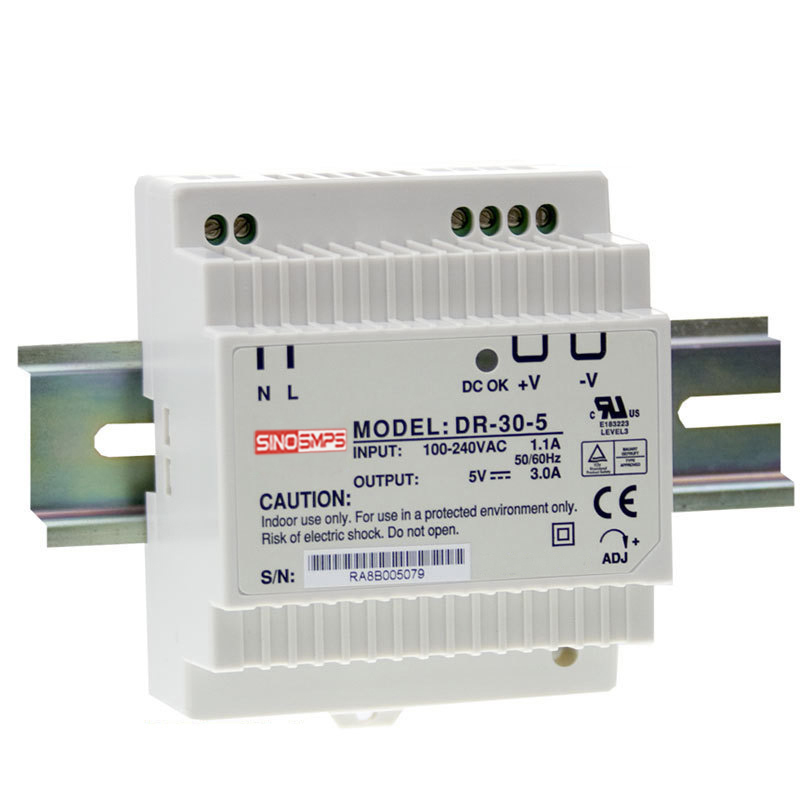

DR-30-5

DR-30-12

DR-30-24

Output

DC voltage

5V

12V

24V

Voltage tolerance

±2%

±1%

±1%

Rated current

3A

2A

1.5A

Current range

0~3A

0~2A

0~1.5A

Rated power

15W

24W

36W

Ripple&noise

80mvp-p

100mvp-p

150mvp-p

DCvoltage ADJ.range

-9%~+10%

±10%

±10%

Input

Voltage range

90~264VAC，127~373VDC

Frequency

47~63HZ

AC current

0.88A/110VAC，0.48A/220VAC

Efficiency

75%

81%

83%

Inrush current

Cold start current  15A/115VAC，30A/230VAC

Leakage current

< 1mA/240VAC

Protection

Over load

Rated output power105%~150%  start over load protection

protection type：hiccup mode，auto-recovery after fault condition is removed

Over voltage

6.8~8.2V

15.6~17.8V

30.6~33.2V

protection type:cut off output voltage,diode clamp

Environment

Working temp,humidity

-20℃~+60℃，20%~90%RH

Storagetemp,humidity

-40℃~+85℃，10%~95%RH non-condensing

Withstand vibration

10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes

Safety

Withstand voltage

I/P-O/P：3KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG：100M ohms/500VDC

Fitstandard

Safety standard

Fit UL1012

EMC standard

EN55022，CLASSA

Others

Dimension

78*93*56mm (L*W*H)

Weight/packing

0.27kg/48pcs/14kg/0.03m³/1.07CUFT

Note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
