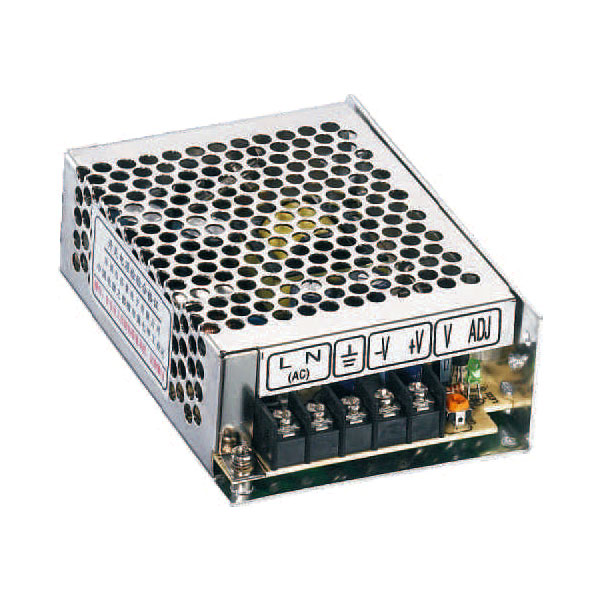

Model

MS-50-5

MS-50-12

MS-50-15

MS-50-24

Output

DC voltage

5V

12V

15V

24V

Voltage tolerance

±2%

±1%

±1%

±1%

Rated current

7A

4.2A

3.4A

2.1A

Current range

0~7A

0~4.2A

0~3.4A

0~2.1A

Rated power

35W

50.4W

51W

50.4W

Ripple&noise

80mvp-p

120mvp-p

120mvp-p

120mvp-p

DCvoltage ADJ.range

-9%~+10%

±10%

±10%

±10%

Input

Voltage range

90~132VAC/170~264VAC(selected by switch), 235~373VDC

frequency

47~63HZ

AC current

1.3A/115VAC, 0.65A/230VAC

efficiency

80%

82%

82%

84%

Inrush current

Cold start current 18A/115VAC, 36A/230VAC

Leakage current

< 1mA/240VAC

Protection

overload

Rated output power115%~150%  start over load protection

protection type:hiccup mode, auto-recovery after fault condition is removed

-----

-----

-----

Environment

Working temp,humidity

-10°C ~+60°C , 20%~90%RH

Storagetemp,humidity

-20°C ~+85°C , 10%~95%RH non-condensing

Withstand vibration

10~500HZ, 2G 10min/1cycle, period for 60 minutes, each axes

Safety

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG: 100M ohms/500VDC

Fitstandard

Safety standard

Fit UL1012

EMC standard

EN55022, CLASSA

Others

Dimension

111*78*36mm (L*W*H)

Weight/packing

0.26kg/50pcs/ 14kg/0.027 m³/0.96CUFT

Note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C  of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
